F10-18M Miniature Thrust Groove Ball Bearing

  • Availability: In Stock

Unit Price:
/ piece
Wholesale Price:
QtyUnit Price
100+ US $0.35
1000+ US $0.32
5000+ US $0.29
20000+ US $0.27
50000+ US $0.25
Total Cost:
US $0.25
This product has a minimum quantity of 100

Shipping Methods

To most of the countries in North Americas, Europes and Asia, we usually use DHL and UPS for shipping, sometimes EMS or FedEX.
To Russia, we use CDEK.ru. Russian customers also can choose their own forwarding / shipping companies.

Please leave comments with the order if either one of them is not suitable for shipping to your country and for customs declaration.

Shipping Cost

The shipping cost mostly depends on the shipment gross weight and shipping destination.

For shipment under 21kgs (kilograms), the shipping cost calculation bases on 0.5kgs. The formula is: X+(Y-0.5)/0.5*Z.
X=1st 0.5kgs cost
Y=shipment gross weight (Kilogram)
Z=shipping rate on each additional 0.5kgs
For example
To USA, the initial 0.5kgs cost is usually around US$20, and the additional cost is US$3.5 per 0.5kgs.
For 15kgs to USA, the shipping cost is: 20+(15-0.5)/0.5*3.5=US$121.5

For shipment above 21kgs, the shipping cost calculation bases on 1kgs. The formula is: Y*Z.
Y=shipment gross weight (Kilogram)
Z=shipping rate each Kilogram
For example
To UK, the shipping rate is 6.5USD/KGS.
For 22kgs to UK, the shipping cost is: 22*6.5=US$143

Generally, the larger the shipment gross weight the lower shipping cost for each item of products.

Delivery Time

The delivery time includes order processing time and shipping time.
Usually, the processing time is 1 - 5 business days depending on the order quantity and products; the shipping time is 3 - 5 business days.

NOTE: all of the costs (shipping, products) does NOT include the taxes occurred at destination country's customs.

We accept the below payment methods:

Paypal: this is authorized Paypal standard payment, you can pay from your credit card and then via paypal. It is for the order total less than certain amount, and only for some certain countries.

Bank Transfer: for any order and any countries

Western Union: for any order and any countries

You will find the available payment methods for specific order on the checkout page. Please feel free to contact us if you want to pay by other methods.

NOTE: Orders paid by Bank Transfer and Western Union will NOT be processed until we receive the bank receipt copy; and will NOT shipped until the payment was received.

Please don't hesitate to contact us for assistance if you encounter any problem on the payment.

Contact with us today to get FREE SAMPLES of the F10-18M Thrust Ball Bearing for testing before your volume order.

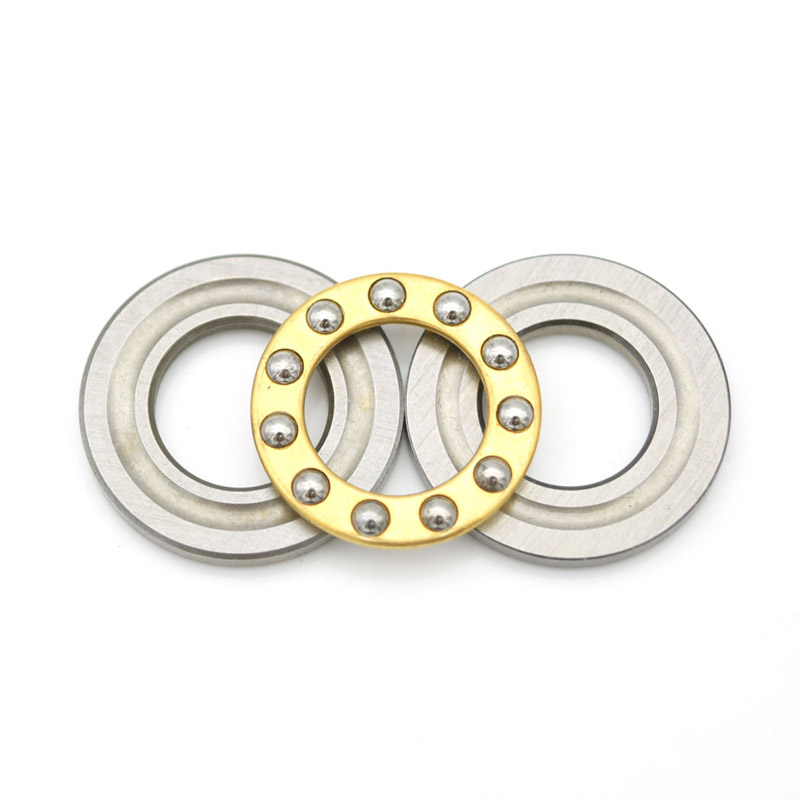

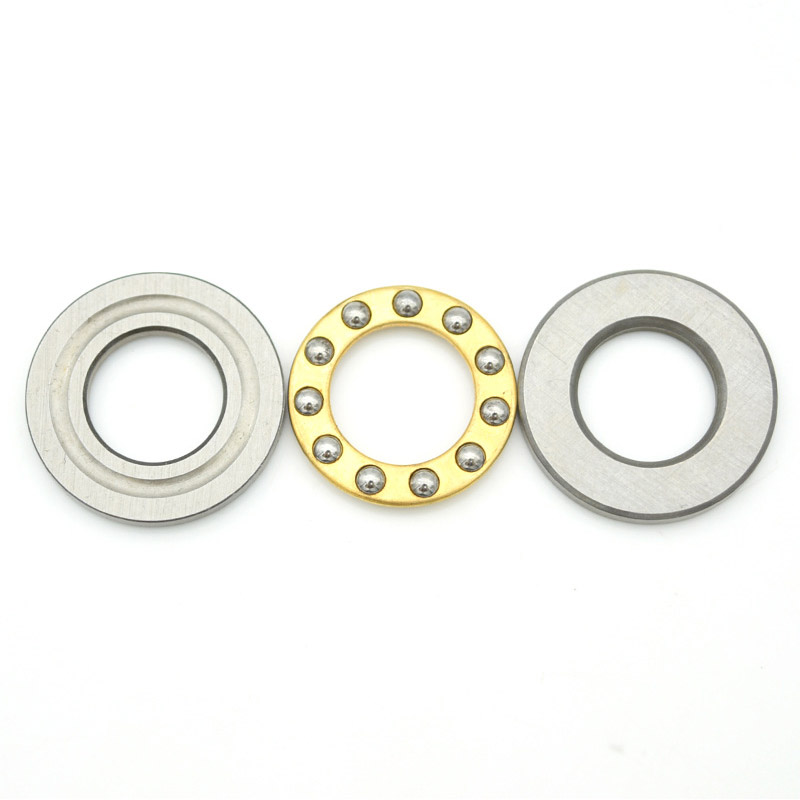

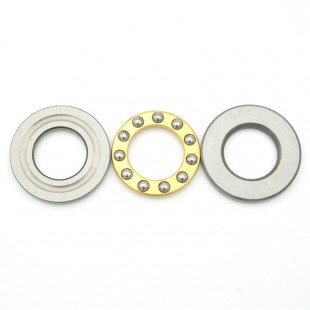

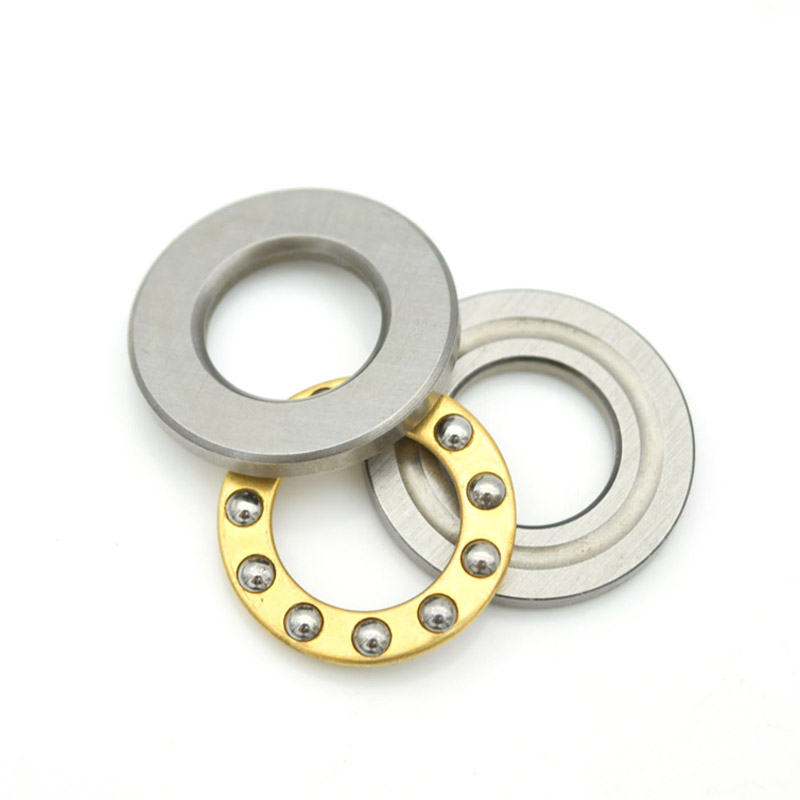

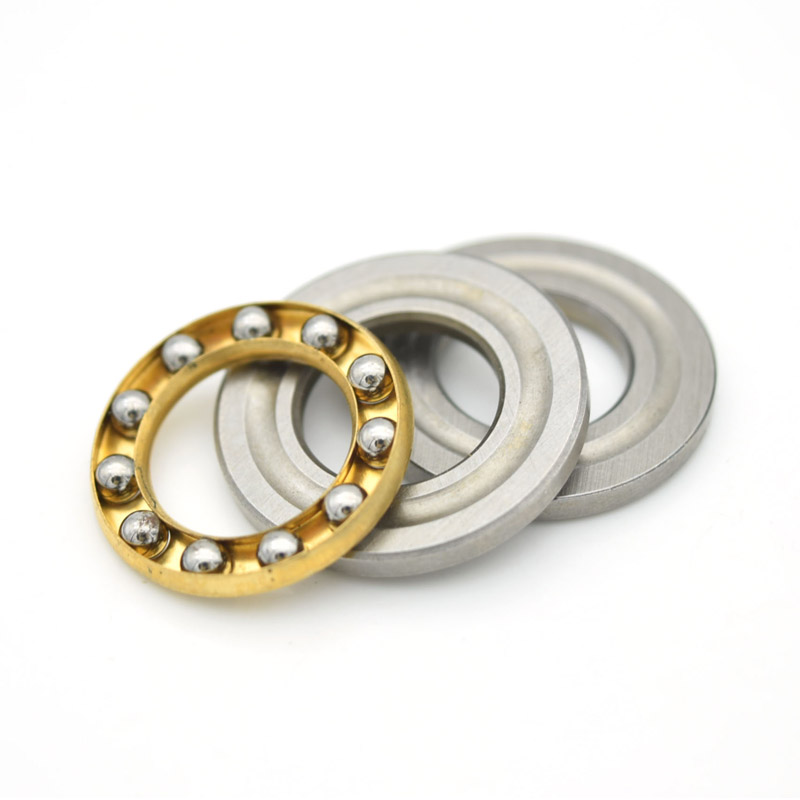

F10-18M is a miniature thrust groove ball bearing with bore diameter 10mm and outer diameter 18mm. Luxmake has huge stock for F10-18M thrust ball bearings which can fulfill your order quickly.

F10-18M Miniature Thrust Ball Bearing Specifications:

Part Number: F10-18M

Bearing type: ball

Structure: ball thrust

Load Direction: Axial

Raceway type: groove raceway

bore diameter of shaft washer(d): 10mm

Outer diameter of housing washer(D): 18mm

bore diameter of housing washer(d1): 10.2mm

Outer diameter of shaft washer(D1): 17.8mm

Thickness(H): 5.5mm

Radius: 0.2mm

Washer Material: Chrome steel 52100 (Gcr15)

Cage Material: Bronze / stainless steel

Ball Material: Chrome steel 52100(Gcr15)

Grade: ABEC-1 (higher grade available)

Clearance: C0 (other clearance available)

Ball Size (mm): 2.381mm

Ball Quantity: 10pcs

Lubrication: grease (oil available)

Temperature Range: -30℃~130℃

Net Weight (g): 5.4 grams

Dynamic Load Rating (Cr): 2470 N

Static Load Rating (Cor): 2721 N
