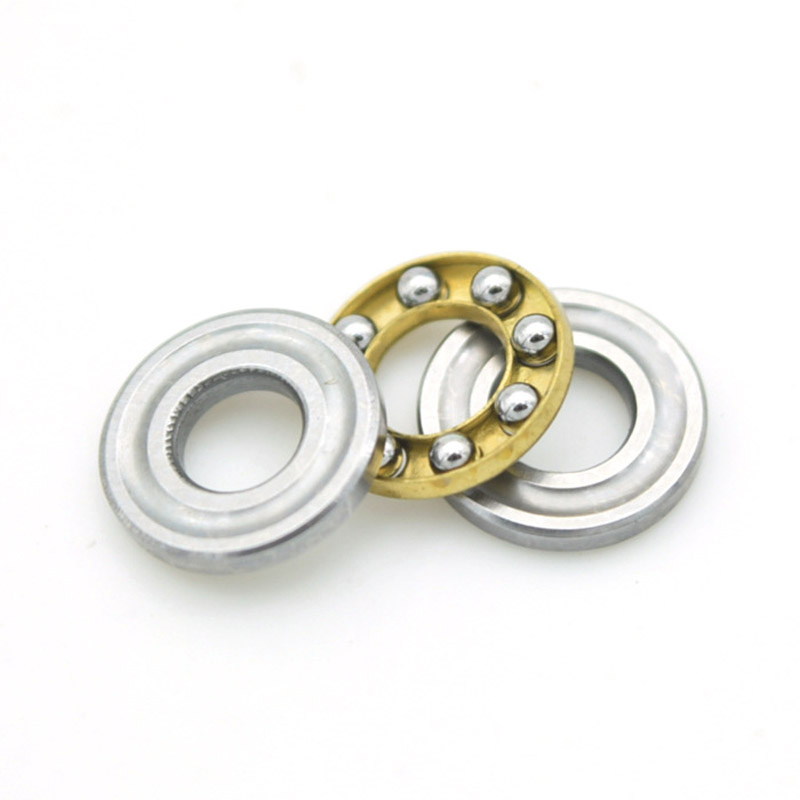

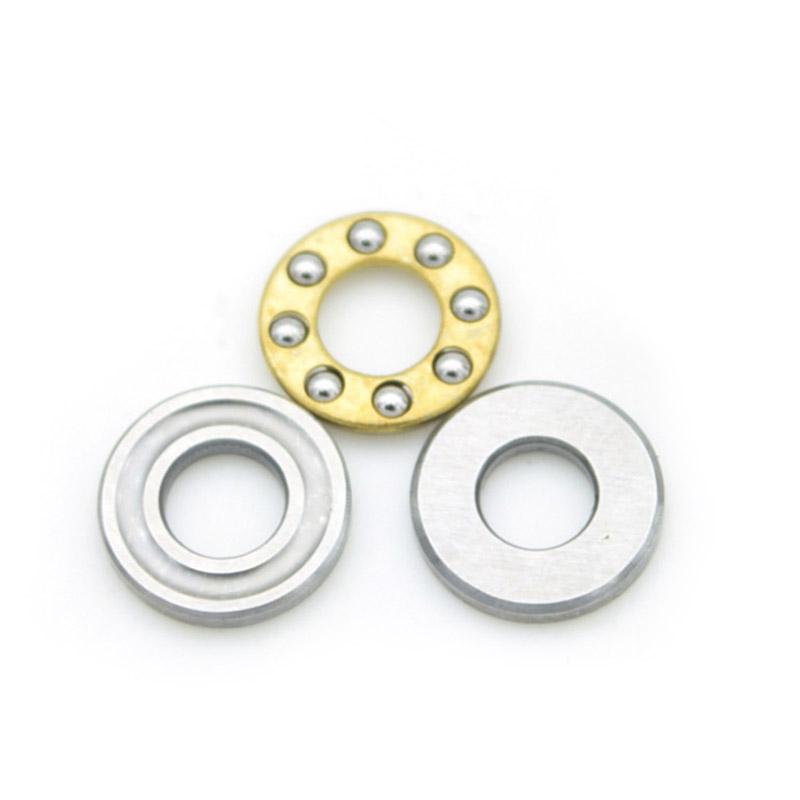

F7-17M is a miniature thrust ball bearing with bore diameter of 7mm and outer diameter of 17mm. FREE SAMPLES are available for F7-17M thrust ball bearings before your volume orders, please contact with us to get the free samples today.


F7-17M Thrust Ball Bearing Specifications:

Part Number: F7-17M

Bearing Type: Ball

Structure: Thrust Ball

Load Direction: Axial

Raceway Type: groove raceway

Bore Diameter of Shaft Washer(d): 7mm

Outer Diameter of housing washer(D): 17mm

Bore Diameter of housing washer(d1): 7.2mm

Outer Diameter of shaft washer(D1): 16.8mm

Thickness(H): 6mm

Radius: 0.3mm

Washers Material: Chrome steel 52100(Gcr15)

Cage Material: Bronze or stainless steel

Ball Material: Chrome steel 52100(Gcr15)

Grade: ABEC-1 (higher grade available)

Clearance: C0 (other clearance available)

Ball Size: 2.381mm

Ball Quantity: 8pcs

Lubrication: grease (oil available)

Temperature Range: -30℃~130℃

Net Weight(g): 6.5 grams

Dynamic Load Rating (Cr): 3086N

Static Load Rating (Cor): 2675N
